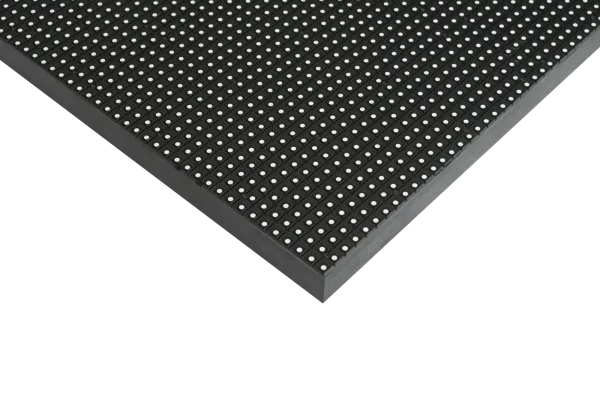

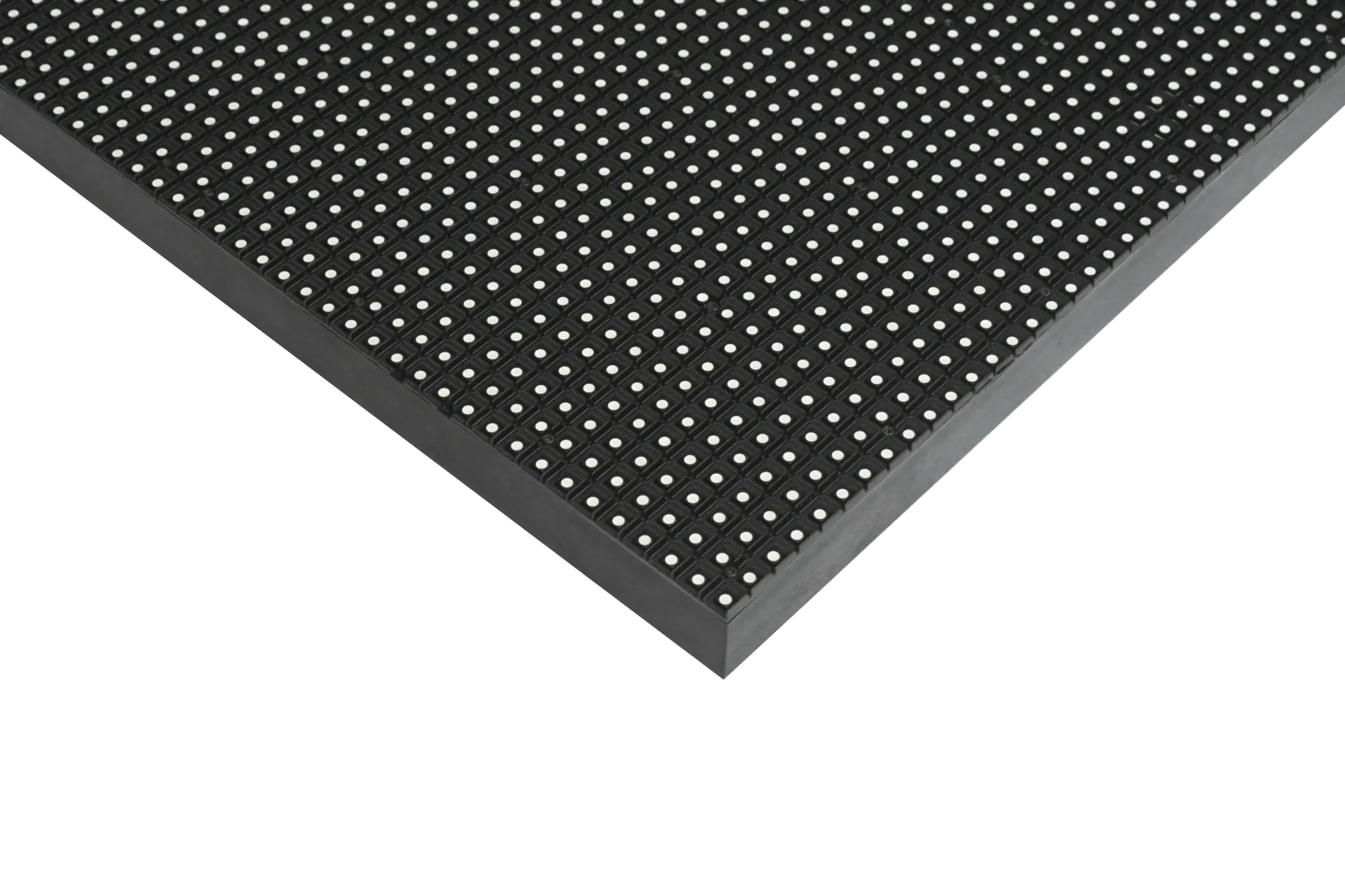

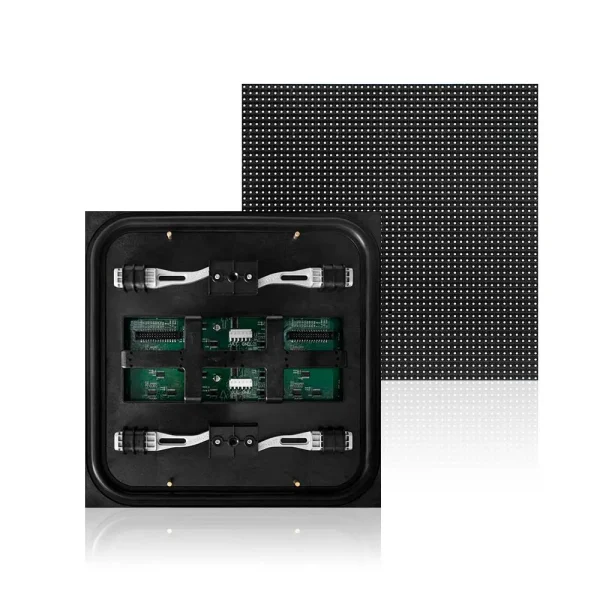

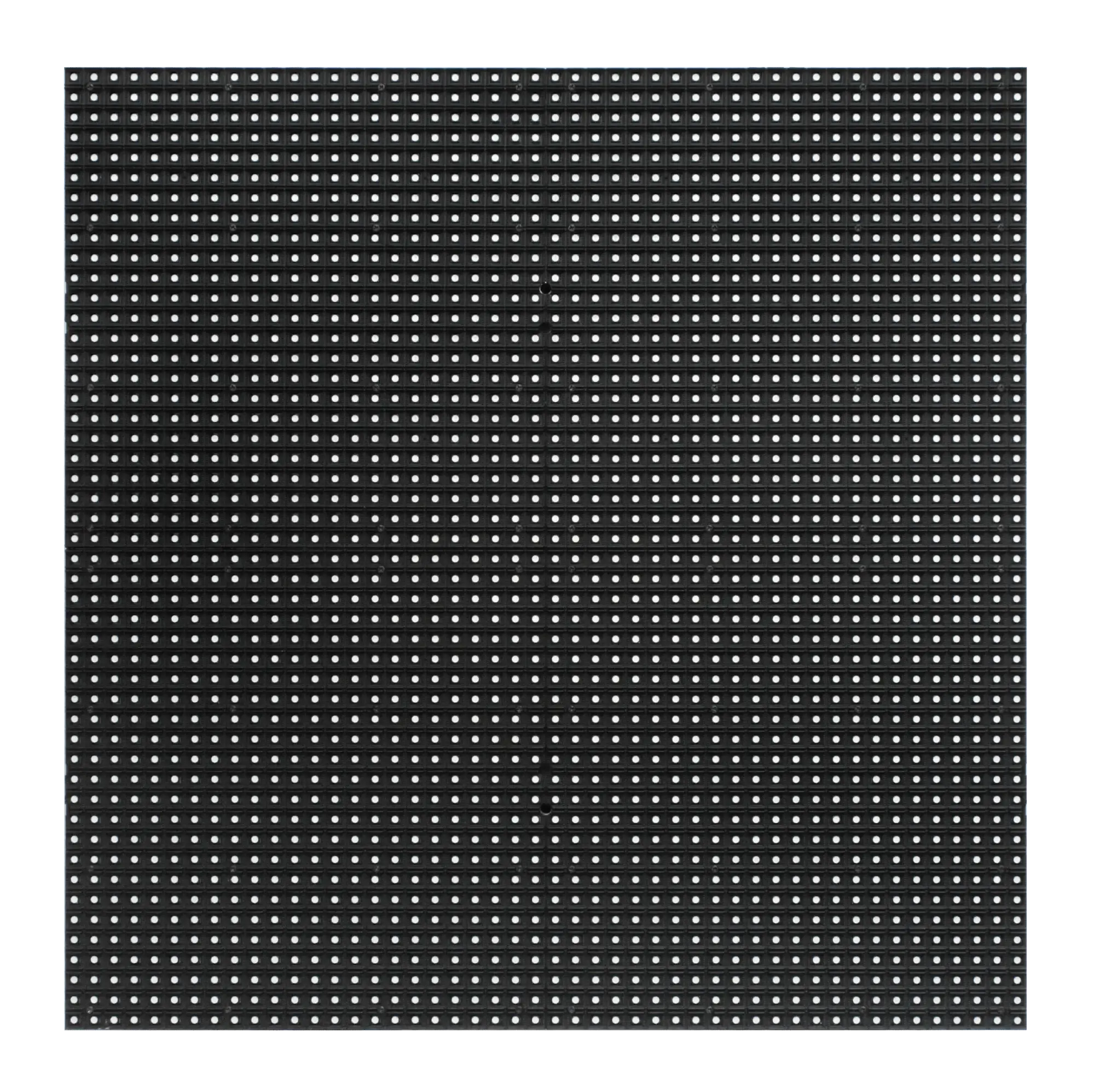

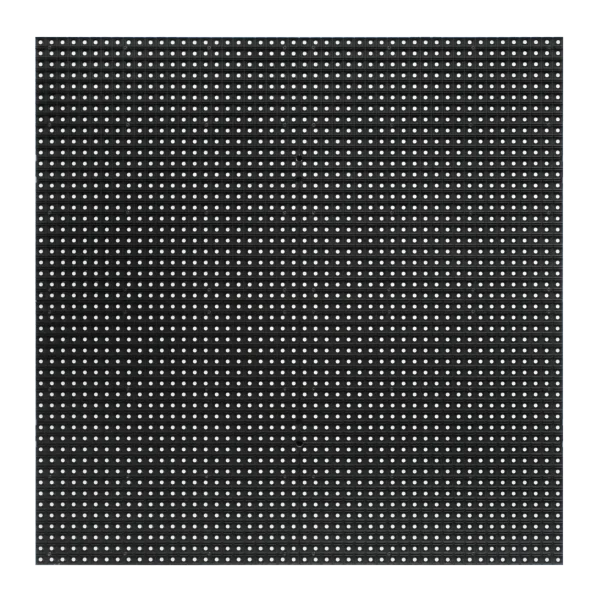

P6.35 1ft x 1ft Outdoor LED Module
NewStar manufactures the superior full color outdoor led module for popular outdoor advertising signs, it’s pixel pitch P6.35 in SMD LED lamp, led module size 1ft x 1ft (304.8mm x 304.8mm), front service solution which particularly well-suite for outdoor & indoor LED sign no structure limited, 3 steps quick time installation, makes your job easier and low cost maintenance.
Features
- Module size is 1ftx1ft(304.8mmx304.8mm), special design for North-American market；
- Module can be maintenance from the front quickly, save maintenance cost and time；
- Best Solution For window sign

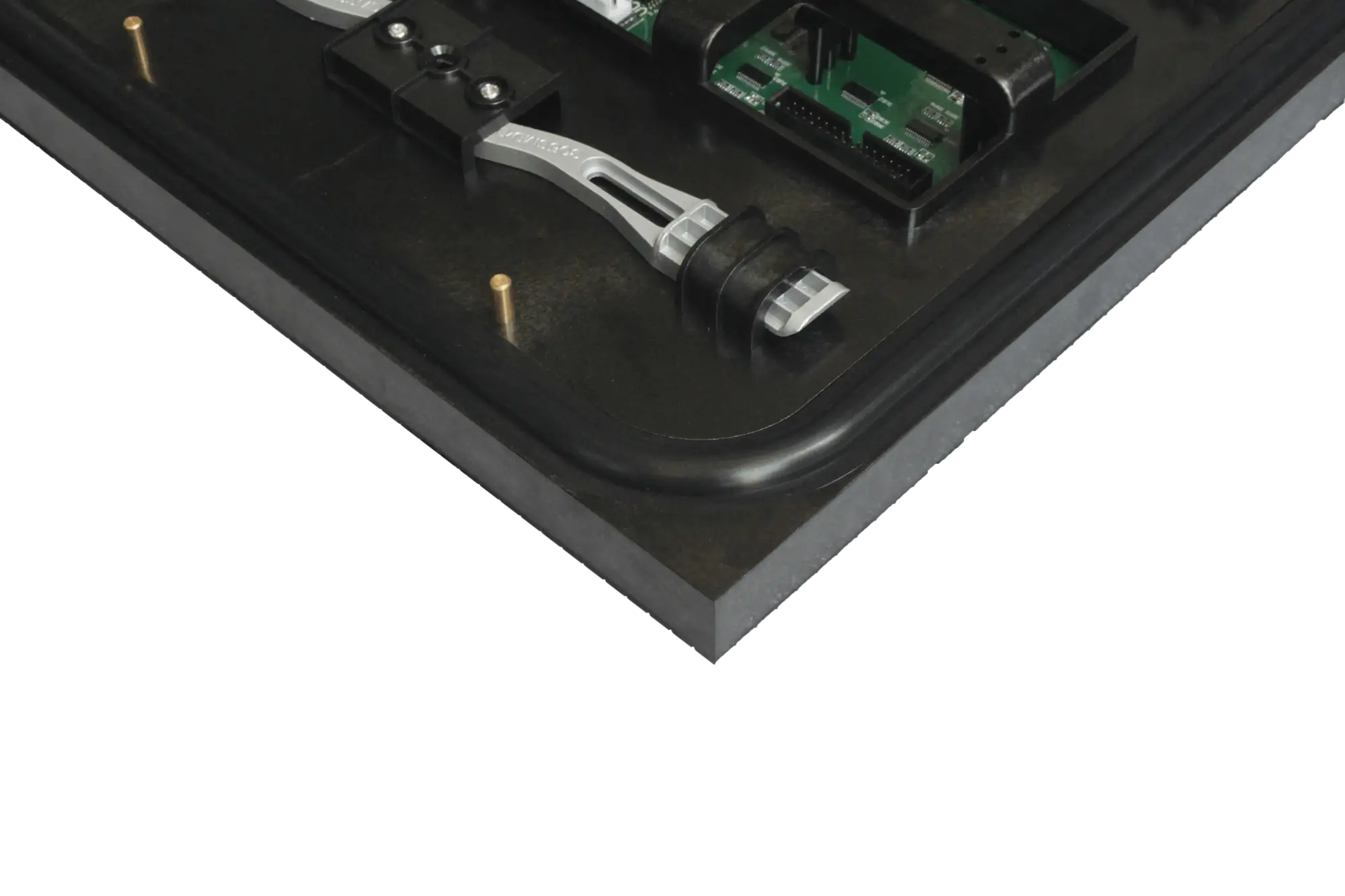

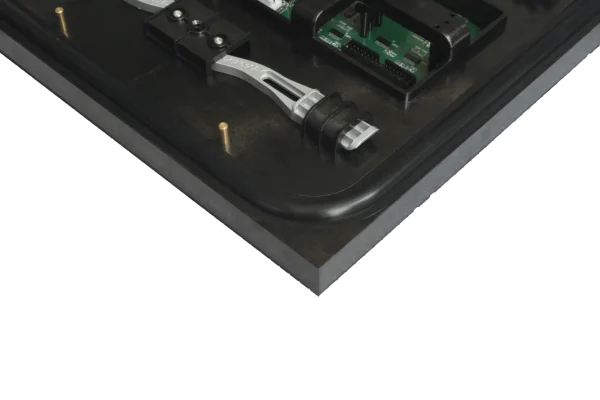

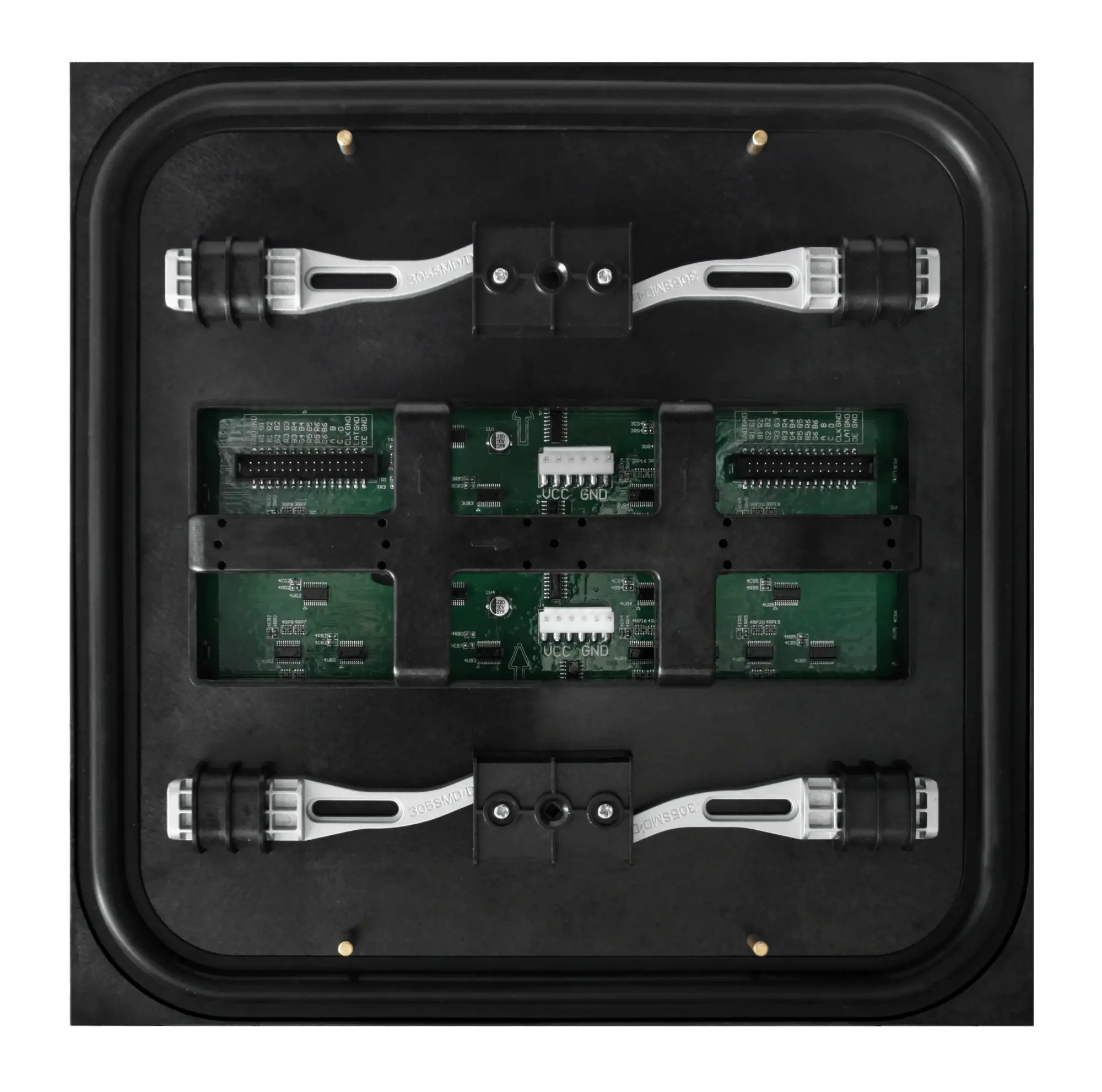

Maintenance Steps
- Insert “T” wrench inside one hole of module & unlock.
- Unlock the other lock.
- Take module out of cabinet.
- Disconnect power & data cable.
|
P6.35 1ft x 1ft SMD Outdoor LED Module Specifications |
||
| Physical Parameters |
Pixel Pitch（ mm） | 6.35 mm |
| LED Configuration | SMD2727 | |
| Module Resolution(dots) | 48 x 48 | |
| Pixel Density（ dots /m²） | 22500 | |
| Module Size（W x H x D）/( mm) | 304.8mm x 304.8mm | |
| Module Weight( Per/kg) | 1.8 Kg | |
| Optical Processing | Color processing (Bit) | 14~16bit |
| Refresh Rate（Hz） | ≥1920Hz | |
| Driving Mode(scan) | 4 | |
| Brightness（ nit） | 6500nit | |
| Viewing Angle (H/V) | 140/55-90 (Newstar’s High Mask Design) | |
| Viewing Angle（ H/V） | 140/140 (Normal Mask) | |
| Electrical Parameters |
Input Voltage（V） | AC110/220V±10% |
| Input Power Frequency（Hz） | 50/60 | |
| Max Power（W/pcs） | ≤ 700 | |
| Average Power（ W/pcs） | 240 | |
| Operating Environment | Storage Temperature (℃） | From ‘-10 to 50 |
| Operating Temperature（ ℃） | From ‘0 to 40 | |
| Storage Humidity（RH） | 10%~90% | |
| Operating Humidity（RH） | 10%~90% | |
| IP Rating | IP65 | |
| Lifetime（hrs） | 100000 | |
| Usage Environment | outdoor fixed installation | |
| Maintenance Method | Front/Rear Maintenance | |
